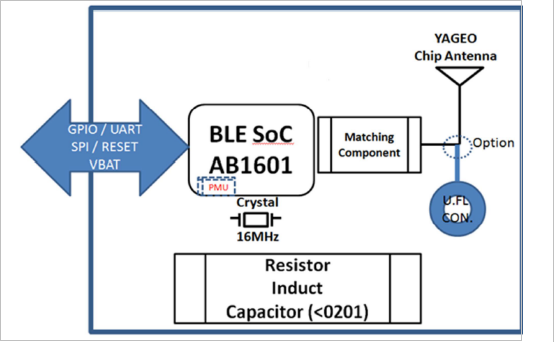

The PT1601B-SX is a low-cost and low-power consumption module which has complies with Bluetooth version 4.2 with LE packet length extension feature. The highly integrated PT1601B-SX with RF front end BLE module makes the possibilities of Bluetooth Low Energy HID(Human Interface Device) and other applications.

PT1601B-SX is Very low active and low power mode current consumption as well as fast mode transitions provide excellent battery lifetime and allows operation on small coin cell batteries and in energy harvesting applications. Embedded 4Mbit flash has high flexibility for customer software development. The support of 9 AIOs is used for game controller application.



Model NamePT1601B-S
Product DescriptionBLE module
PCBA DimensionL x W x H: 15 x 10 x 1.7 (typical) mm
Module InterfaceUART/SPI/I2C
Operating temperature-10°C to 65°C
Storage temperature-20°C to 85°C

Operating Humidity: 10% to 80%

Non-CondensingStorage Humidity: 5% to 95% Non-Condensing
